Handheld Inner Diameter Measuring Gauge

The device is designed for non-contact scanning and measuring the inner diameter of pipes. Measured parameters: inner diameter, ovality, roundness.

RF096-100/250-87-HH

Diameter measurement range, mm

100...250

Diameter measurement error, mm

±0.05

Discreteness of indication, mm

0.01

Space resolution, points/turnover

700

Measurement time, not greater, s

See detailed specifications →

RF096-18/30-155/307-НН

ID measurement range, mm

18...30

ID measurement error, mm

±0.05

Discreteness of indication, mm

0.01

Space resolution, points/turnover

700

Measurement depth from the pipe end, mm

155...307

See detailed specifications →

Handheld Inner Diameter Measuring Gauge RF096-100/250-87-HH

Parameter		Value
Diameter measurement range, mm		100...250
Diameter measurement error, mm		±0.05
Discreteness of indication, mm		0.01
Space resolution, points/turnover		700
Measurement depth from the pipe end, mm		87
Measurement time, not greater, s		2
Measured parameters		diameter (min., max., average), ovality, roundness
Dimensions		see Figure 1
Power supply, V		3.7 V, Li-ion battery, 6400 mAh
Number of measurements that can be taken before recharging the battery, not less		1500
Operating ambient temperature, °С		-10...+50
Enclosure rating		IP42
Laser sensor output power, mW		1
Laser safety class		2 (IEC60825-1)
Weight, kg		1.2

Note: Gauge parameters can be changed for a specific task.

Figure 1

Handheld Inner Diameter Measuring Gauge RF096-18/30-155/307-НН

Parameter		Value
ID measurement range, mm		18...30
ID measurement error, mm		±0.05
Discreteness of indication, mm		0.01
Space resolution, points/turnover		700
Measurement depth from the pipe end, mm		155...307
Measurement time, not greater, s		2
Measured parameters		diameter (min., max., average), ovality, roundness
Dimensions		see Figure 2
Power supply, V		3.7 V, Li-ion battery, 6400 mAh
Number of measurements that can be taken before recharging the battery, not less		1500
Operating ambient temperature, °С		-10...+50
Enclosure rating		IP42
Laser sensor output power, mW		1
Laser safety class		2 (IEC60825-1)
Weight, kg		4

Note: Gauge parameters can be changed for a specific task.

Figure 2

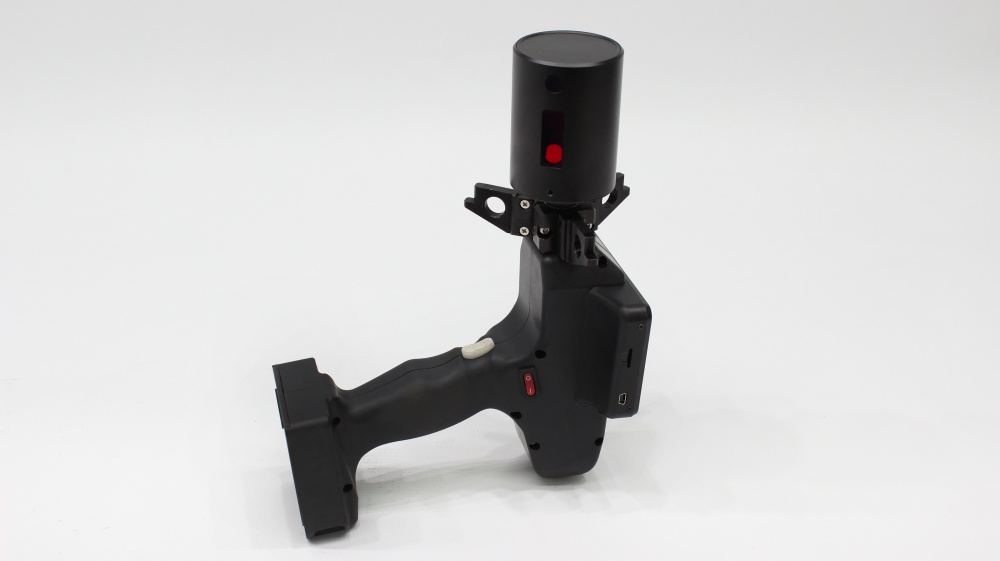

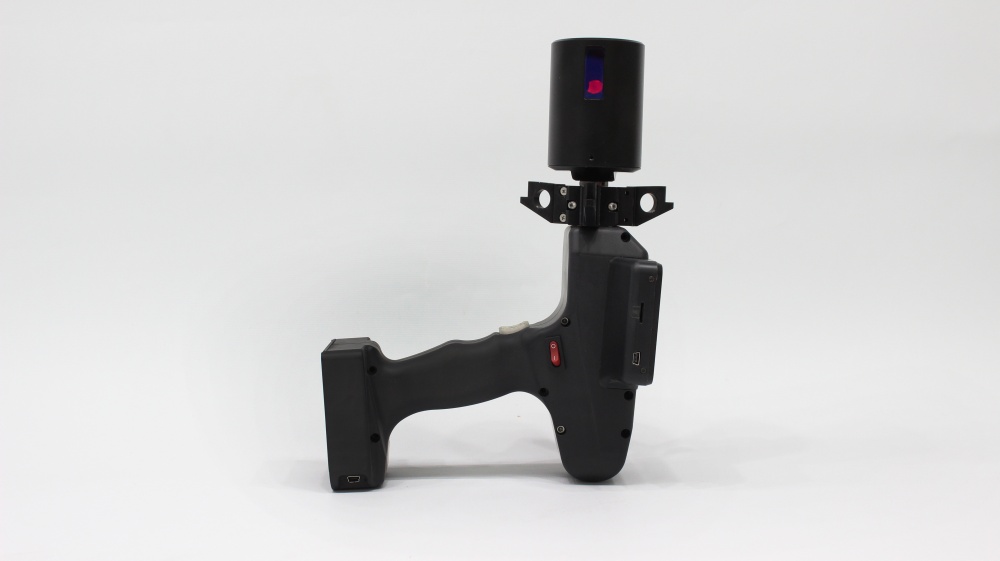

The operation of the gauge is based on the principle of laser scanning of the inner surface of the pipe by a rotating laser head. To achieve the required accuracy, the range of controlled diameters is divided into two sub-ranges controlled by independent laser triangulation sensors installed in a rotating head. The gauge also contains removable supports (two sets) designed to install the gauge on the end of pipes of different diameters. The rotation of the laser head is carried out by a built-in motor. The gauge is equipped with a display to show the results.

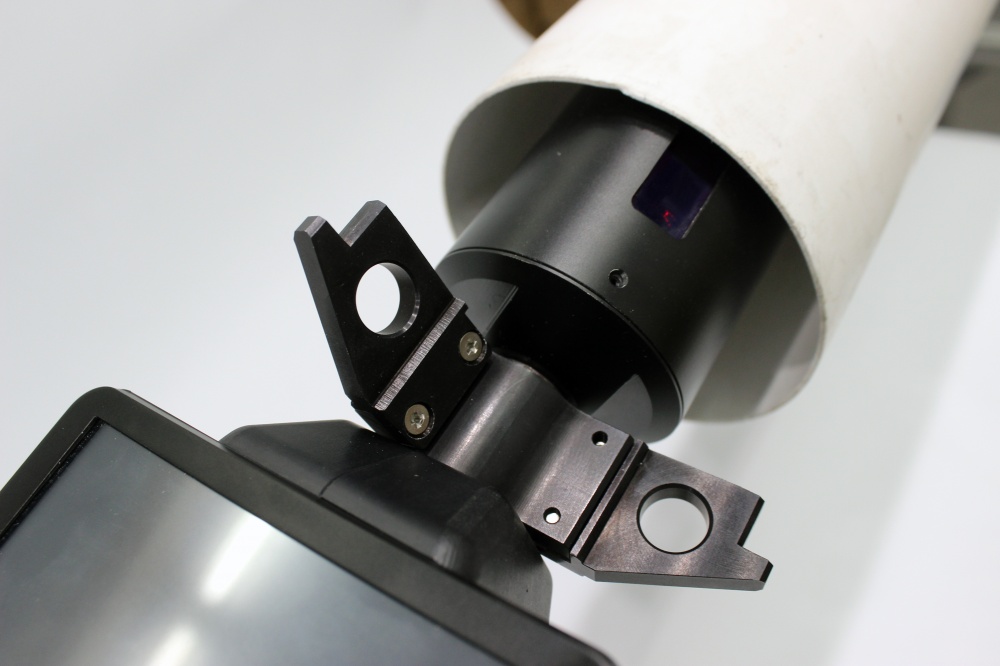

The gauge operates as follows: the operator inserts the head into the pipe and places the supports of the gauge at the pipe end. After pressing the Measurement button, the laser head begins rotating, the laser sensor scans the inner surface of the pipe, and the built-in controller receives the polar coordinates of the surface (the distance from the axis of rotation measured by the laser sensor and the corresponding rotation angle measured by the encoder). The controller calculates the required parameters (minimum, maximum and average diameters, roundness), displays them and shows the result OK / NOK in accordance with the specified tolerances. Measurement data can be accumulated in the gauge memory and transferred to the database on the PC.

Handheld Inner Diameter Measuring Gauge, RF096-100/250-87-HH

Handheld Inner Diameter Measuring Gauge RF096-18/30-155/307-НН

Example of designation when ordering (RF096-100/250-87-HH)

RF096-Dmin/Dmax-L-HH

Symbol	Description
Dmin/Dmax	Diameter measurement range, mm
L	Measurement depth from the pipe end, mm
HH	Handheld gauge.

Exampe: RF096-100/250-87-HH

Example of designation when ordering (RF096-18/30-155/307-НН)

RF096-Dmin/Dmax-Lmin/Lmax-HH

Symbol	Description
Dmin/Dmax	Diameter measurement range, mm
Lmin/Lmax	Measurement depth from the pipe end, mm
HH	Handheld gauge

Exampe: RF096-18/30-155/307-НН.
